Clap Snare Eurorack Kit

Need some snap and crack added to your drum rack?

Don't want a lot of complicated controls?

Like building the module yourself?

Then this kit is for you.

The module contains two independent percussion sound generating circuits.

Circuits are turned to produce sounds similar to a clap sound and snare drum.

Based on a self excited Bridged-T Filter, with digital white noise.

Takes 5 millisecond trigger pulse and outputs a drum sound.

Two control knobs D and F

D controls the duration of the release of the generated sound, adjustable from a quick hit to a long roll off.

F controls the frequency of the percussion sound, from deep and low to snappy and high.

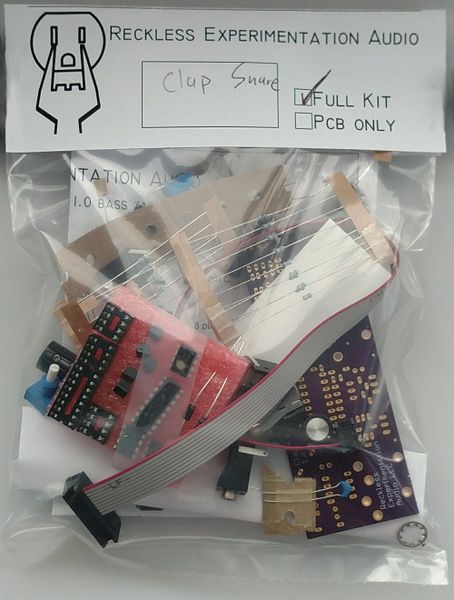

What's in the Bag?

Complete Kit to make this module

12 inch 10 pin unpolarized power cable

Two M2.5 screws

Two M3 screws

Input impedance 100K ohm

Output impedance less then 1K ohm

Compatible with both 5V and 12V trigger pulses with an output impedance of 1K ohm.

Current consumption: +12V 20mA, -12V 15mA

compatible with +-15V systems.

Module is polarity protected.
